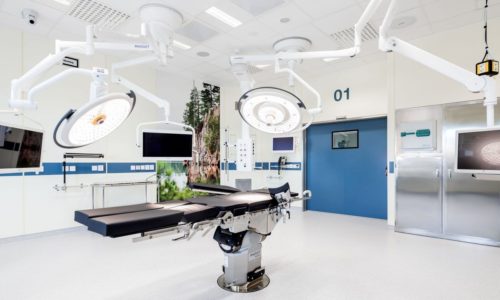

MODULAR OPERATION THEATER
Modular Operation theatre walls and Ceiling made of 1 mm thick stainless steel sheets of AISI 304 grade, visible side having satin/mat finish and coated with protective PVC taping, which shall be removed upon completion of the Operation theatre, before handing over.
The inner surface walls are fixed to the brick walls with essential support at equal intervals with using anchor fasteners and fixtures of approved makes.
Wall panels are made seamless, and homogeneous, so as to have no cavity or projection at joints.
The vertical panels of the S.S walls match flush with the curved skirting of the flooring without projection or cavity. There will not be any sharp edges and all corners are curved to avoid bacteria/fungal contamination.
The wall panels are supported to the masonry wall with stainless steels brackets and fixtures and using nonferrous hard ware. The door frames are made of 1.2mm stainless steel sheets of same grade.
Modular OT design and construction is provided with openings required for later inclusion of additional equipments, repair of installed equipments, without affecting the rigidity and strength of the structure.
All the four corners have return air duct outlet, the grill of which is made of stainless steel/Powder coated Aluminium. The joints between walls and ceiling (skirting) panels are connected by curved panels at a radius of 450mm.
The cupboards, cabinets and shelves inside the theatre, if necessary; provided with hinged swing doors and shall be provided with locks.
All provisions made in the Operation theatre ceiling for mounting other equipment i.e. Ceiling-mounted Operation theatre light, Pendants, Brackets for monitors, Cameras etc.

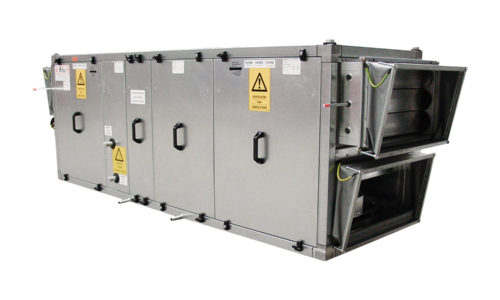

AIR HANDLING UNIT
sections offer both sturdy construction and flexible combination of components
such as coils and filters to suit specific applications.

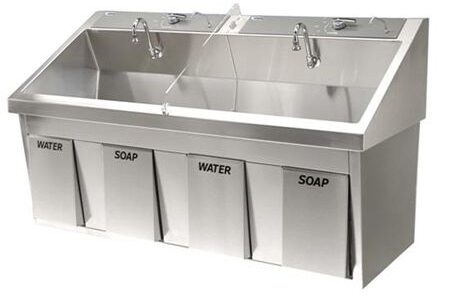

HOSPITAL WASH SINK-SURGICAL
Products Code : KMS04
Stainless Steel Special Purpose Hospital Sinks/ INSTRUMENT WASH SINKS available in considerable size of depth and length as per customer requirement.
SURGEON’S CONTROL PANEL
Product Code: KMS02
Digital Display Operation theatre Control Panel, consists of the following displays.
Time day clock
Time elapse day clock
Temperature & Relative humidity display
Positive Pressure indicator
General Lighting System controls
Operation LED Lights Control

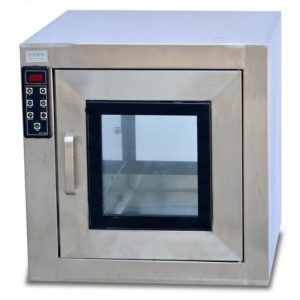

PASS/HATCH BOX (MANUAL/DIGITAL CONTROLLED)
Product Code: KMS03
Pass Boxes, are so designed to handle the soiled materials from sterile areas, to transfer to an adjacent room-without compromise in air quality. The special design of doors allows opening of only one door at a time.
Pass boxes are available in two models :
- Static pass boxes
- Dynamic Pass Boxes.
DIGITAL ELECTRONIC CONTROL SYSTEM INCORPORATED.
The SS double shell, made of SS 304, 1.2 mm thick material.

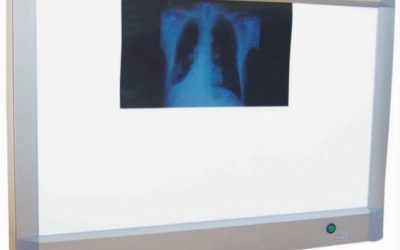

X-RAY FILM VIEWER- 3 FILM
Products Code : KMS01
provided with flush mounted Dimmable LED X-ray film viewer (14 x 17 – 3 films), which are given provision for controlling the intensity of illumination from 3-100%.

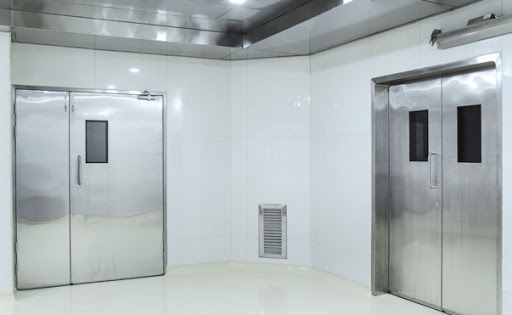

STAINLESS STEEL SWING DOORS
Product Code: KMS05
OPERATION THEATRE MAIN DOOR: Stainless Steel Hermetically sealed Double swing Doors with heavy duty SS Hinges – Manual Stainless Steel Doors available different sizes according to different opening sizes. Also Lead Shielded Radiation Protection doors suitable for X-ray, CT room , Operation theatre, Cathlab door etc.
